Jet Engine Turbine Blades
Problem:
Two different blade designs with two distinct curvatures and weights. Blades are high cost precision parts that are very susceptible to damage if they inadvertently contact a hard surface. Application has various part orientations for placement into carts and test fixtures. End-effector requires both a pitch and rotation function.
Application:
Remove the turbine blade from an incoming cart, set it into a number of test fixtures and then set part into an outgoing cart.
Solution:

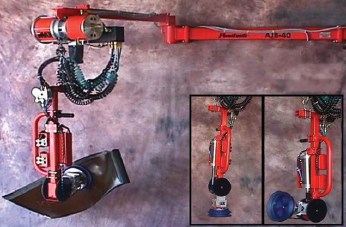

Easily controlled maneuverability with an Articulated Jib Boom and pneumatic balancer. Low profile powered pitch assembly to fit in-between the blades in the rack. 10″ bellows vacuum cup to conform to front side and back side of the blade curvatures.
