Oil Pan
- Industries: Agriculture, Construction, Military and Defense
- Positioning Challenges: Engine Handling
Problem:
The system capacity rating must be able to accommodate larger oil pans that may be manufactured at a future date. The radial reach and capacity requirements create significant moment loads. Work Cell contains obstructions and low headroom.
Application:
Lift the oil pan weighing up to 180 lbs., laying flange down, from the staging table approximately 36″ high. The pan is pitched up approximately 65° with the top of the flange approximately 60″ from the floor, and transferred 138″ to the motor.
Solution:

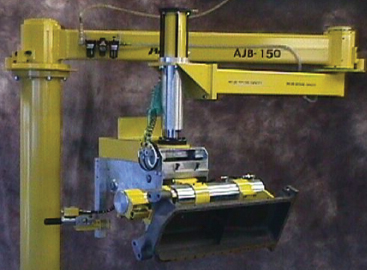

Model AJB-150 with V-Lift and modified end-of-arm bracket has 440 lbs. payload capacity and 138″ of radial reach. “Pin on” actuating jaws and special 65° pitching end-joint assembly.
